Model No: IRX350-2CI

Auto backwash, 350Lpm, 50mm connection

Puretec IRX350-2CI Iron Removal Water Treatment System
The Puretec IRX350-2CI are advanced catalytic iron removal systems, designed specifically for applications where both iron and sediment are present. Iron is usually the cause of the notorious orange-brown staining often seen on fences and buildings, and indoors in wet areas such as toilet bowls. In addition to staining, at higher levels it causes corrosion and damage to valves and fixtures. Unlike traditional iron removal systems, the IRX Series is also suitable where low levels of Hydrogen Sulphide are present - one of the most common causes of bad odour in ground water.

Removes orange and brown staining, sediment and bad odour in ground water
The Puretec IRX350-2CI is also suitable where low levels of Hydrogen Sulphide are present - one of the most common causes of bad odour in ground water. It is also designed for applications where both iron and sediment are present. Iron is usually the cause of the notorious orange-brown staining that causes corrosion and damage to valves and fixtures.

Find a Puretec Dealer

Features & Benefits

• Designed to reduce staining & deposits from iron, manganese and sediment.
• Prevent the staining and rust build up in your water system.
• Automatic backwash – set and forget.
• Stores system configuration and operation data in non-volatile memory.
• Up to 2” connections for minimum pressure loss.
• Weather resistant cover for controller.
• Weatherproof transformer.
• Flexible programming options.
• Volume-based backwash options available for up to 450,000/day litres from a single unit.

Specifications

Ordering Code
IRX350-2CI
Valve
Automatic 2CI
pH Range
6.5 - 9
Flow Rate
350 Lpm
Maximum Flow Rate
430 Lpm
Connection
2” Male BSPT, 1½” Drain
Min/Max Pressure
200 - 600 kPa
Operating Temperature
5 - 40°C (41 - 104°F)
Power Supply
230V AC / 50 Hz
Warranty
1 year^

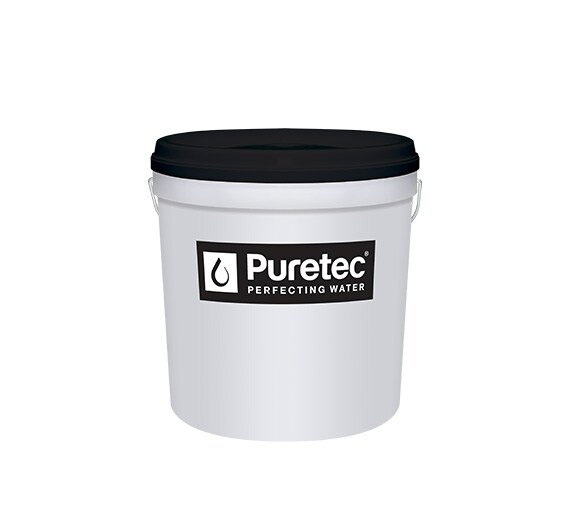

Replacement Media Kits
RMK-IRX350
Accessories
WTV5092 - Differential pressure switch for load based backwashing.
WTV7500 - Alternating valve for 2 system / clean water to backwash.
WTV7550 - No Bypass valve to isolate the system during regeneration.
WTV7210 - Flow meter for volume based backwash.
WTV7400 - Microswitch kit for 2CI models.
Operating Conditions: 1. Dissolved Oxygen Content Minimum 15% of the Iron. 2. Staining threshold is 0.2 to 0.3ppm. 3. Nominal filtration: 3 micron. 4. The flow rate while the filter backwashes, needs to be equal to the stated service flow to maintain proper backwash functionality, which is critical for optimum performance of filtration systems.
