Model No: SFS2000

Auto backwash, 30Lpm, 25mm connection

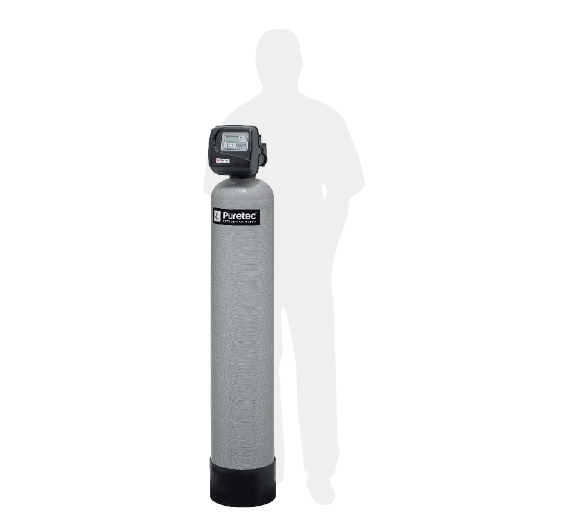

The Puretec SFS2000 sediment filtration system removes sediment, silt, sand and other particulate, preventing a build-up of sludge in your pipe work, hot water systems and appliances. It delivers a fully automatic and highly dependable control valve, which helps minimise energy and water waste. Features a fully automatic operation that provides a reliable design and simple programming for ease of use.

Automatically reduces dirt, rust and other sediment in your water.
Sediment filtration systems remove sediment, silt, sand and other particulate presenting a buildup of sludge in your pipe work, hot water systems and appliances. The Puretec SFS Series effectively protects your system with little or no maintenance by automatically back washing the graded filter bed.
$2,087.01 Incl. GST*
*Price listed is suggested retail price. Reseller price may vary.

Features & Benefits

• Reduces sediment, silt and suspended solids in high flow dirt applications.
• Filters sediment and particulate down to 3 micron.
• Complete system, no extra parts required.
• Automatic backwash – set and forget.
• Stores system configuration and operation data in non-volatile memory.
• Solid state microprocessor with easy access front panel settings.
• Front panel display for time of day, days until next regeneration.
• Weather resistant cover for controller.
• Weatherproof transformer.

Specifications

Ordering Code:
SFS2000
Valve:
Automatic E1-matic
Maximum Suspended Solids:
500 mg/L
Service Flow Rate:
30 Lpm
Maximum Flow Rate:
80 Lpm
Inlet / Outlet / Drain Connections:
1” Male BSPT, ¾” Drain
Min/Max Operating Pressure:
200 - 690 kPa
Operating Temperature:
4 - 43°C (40 - 110°F)
Power Supply:
230V AC / 50 Hz
Warranty:
1 year^

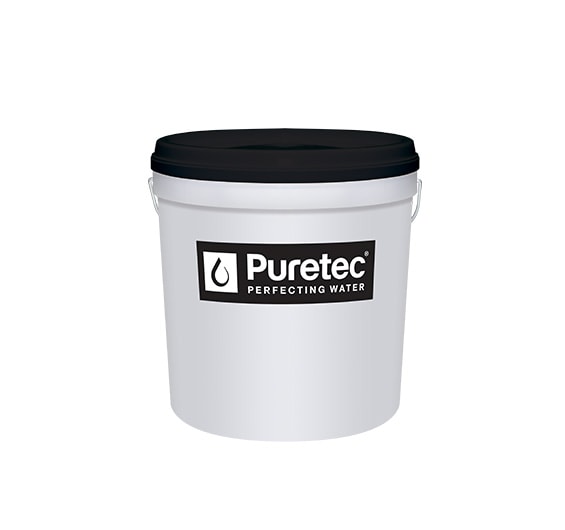

Replacement Media Kits:
RMK-SFS2000
Optional Accessories:
WTV5090 - Micro switch for automation of external equipment.
WTV5000 - Bypass assembly for testing, and maintenance.
WTV5092 - Differential pressure switch for load based backwashing.
Operating Conditions: 1. Not recommended for colloidal particles. 2. Water turbidity and particle size will affect recommended flow rate. 3. The flow rate while the filter backwashes, needs to be equal to the stated service flow to maintain proper backwash functionality, which is critical for optimum performance of filtration systems. 4. Operating pressure 200 - 690 kPa, pressure loss 100 kPa.
